Webhooks Documentation

What are Webhooks?

Webhooks are automated HTTP callbacks that allow Corgea to send real-time notifications to your external systems when specific events occur. Instead of continuously polling our API to check for updates, webhooks push event data directly to your specified endpoint the moment something happens.

Key Benefits

Real-time notifications - Receive instant updates when security issues are found, status changes occur, or scans complete
Automation - Trigger workflows in external tools like Slack, Zapier, or custom applications
Efficiency - No need to poll APIs - we push data to you when events happen
Flexibility - Subscribe only to the events you care about and filter by project or status
Reliability - Built-in retry logic and delivery tracking ensure your notifications get through

Supported Event Types

Corgea supports webhooks for the following events: Issue Events:

issue.status_changed - Triggered when an issue’s status is updated (e.g., open → fixed)
issue.assigned - Triggered when an issue is assigned to a team member

Scan Events:

scan.started - Triggered when a security scan begins
scan.completed - Triggered when a scan finishes successfully
scan.failed - Triggered when a scan encounters an error

How Webhooks Work

The Webhook Lifecycle

Event Occurs

Something happens in Corgea (e.g., a scan completes, an issue status changes)

Webhook Triggered

The system identifies all webhooks subscribed to that event type

Filtering Applied

Project and status filters determine if the webhook should fire

Payload Built

A standardized JSON payload is constructed with event details

HTTP POST Request

The payload is sent to your webhook URL with security headers

Retry Logic

If the request fails, automatic retries occur with exponential backoff

Delivery Logged

All attempts are tracked in the delivery history for troubleshooting

Payload Structure

All webhook payloads follow a standardized structure:

webhook-payload.json

{
  "event_id": "550e8400-e29b-41d4-a716-446655440000",
  "event_type": "scan.completed",
  "timestamp": "2025-01-15T14:30:00.000Z",
  "data": {
    "company": "company-uuid",
    "scan_id": "scan-uuid",
    "project": {
      "id": "project-uuid",
      "name": "My Application"
    },
    "issues_found": 12,
    ...
  }
}

Security Features

HMAC Signature Verification

When you provide a secret key, Corgea includes an X-Corgea-Signature header
This header contains an HMAC-SHA256 hash of the payload
Verify the signature to ensure the webhook came from Corgea

Custom Headers

Include headers required by your endpoint (e.g., authentication tokens)
Configure custom headers during webhook setup

HTTPS Required

All webhook URLs must use HTTPS for secure transmission
Non-HTTPS URLs will be rejected to protect sensitive data

Automatic Retry Logic

If webhook delivery fails, Corgea automatically retries with the following strategy:

Initial attempt + 2 retries = 3 total attempts
Exponential backoff: 2 seconds, 4 seconds between retries
Timeout: 10 seconds per request
Auto-pause: After 10 consecutive failures, the webhook is automatically paused

Headers Sent with Each Webhook

webhook-headers.txt

Content-Type: application/json
X-Corgea-Event: issue.status_changed
X-Corgea-Delivery: <delivery-uuid>
X-Corgea-Timestamp: <unix-timestamp>
X-Corgea-Signature: <hmac-signature> (if secret configured)
User-Agent: Corgea-Webhooks/1.0

Setting Up a Webhook

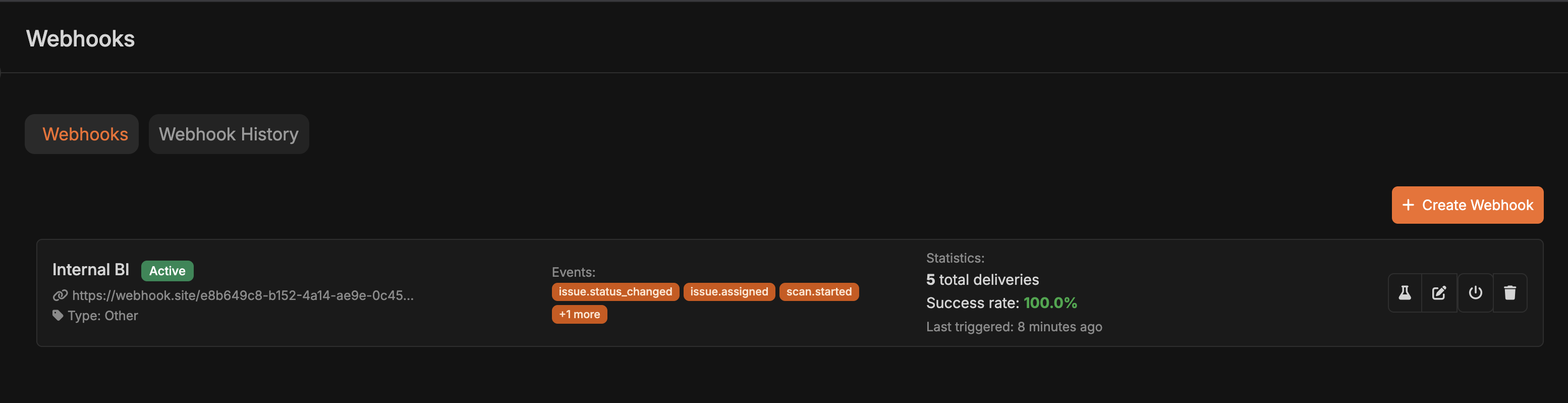

Webhooks management interface showing list of configured webhooks

Prerequisites

Admin or integration management permissions in your Corgea account

A webhook endpoint URL that accepts POST requests

HTTPS endpoint (required for security)

Step-by-Step Setup

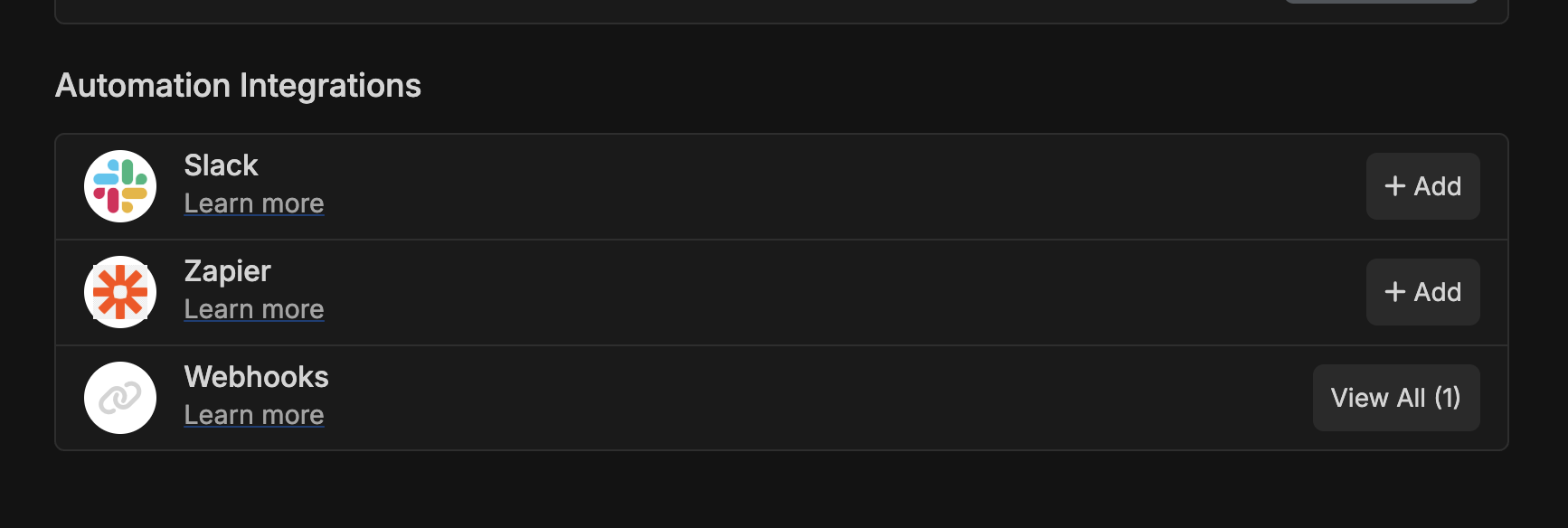

Navigate to Integrations

Go to your Corgea dashboard
Click on “Integrations” in the navigation menu
Select “Webhooks” or “Create New Webhook”

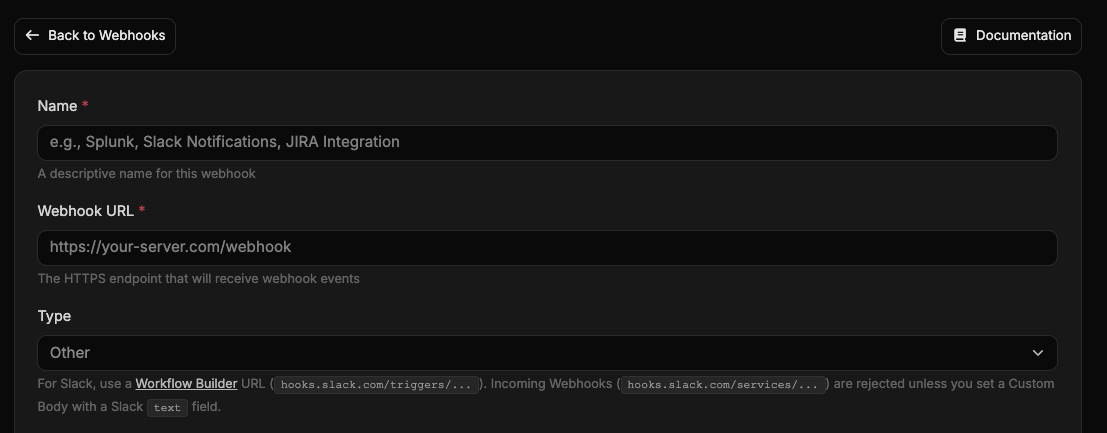

Configure Basic Settings

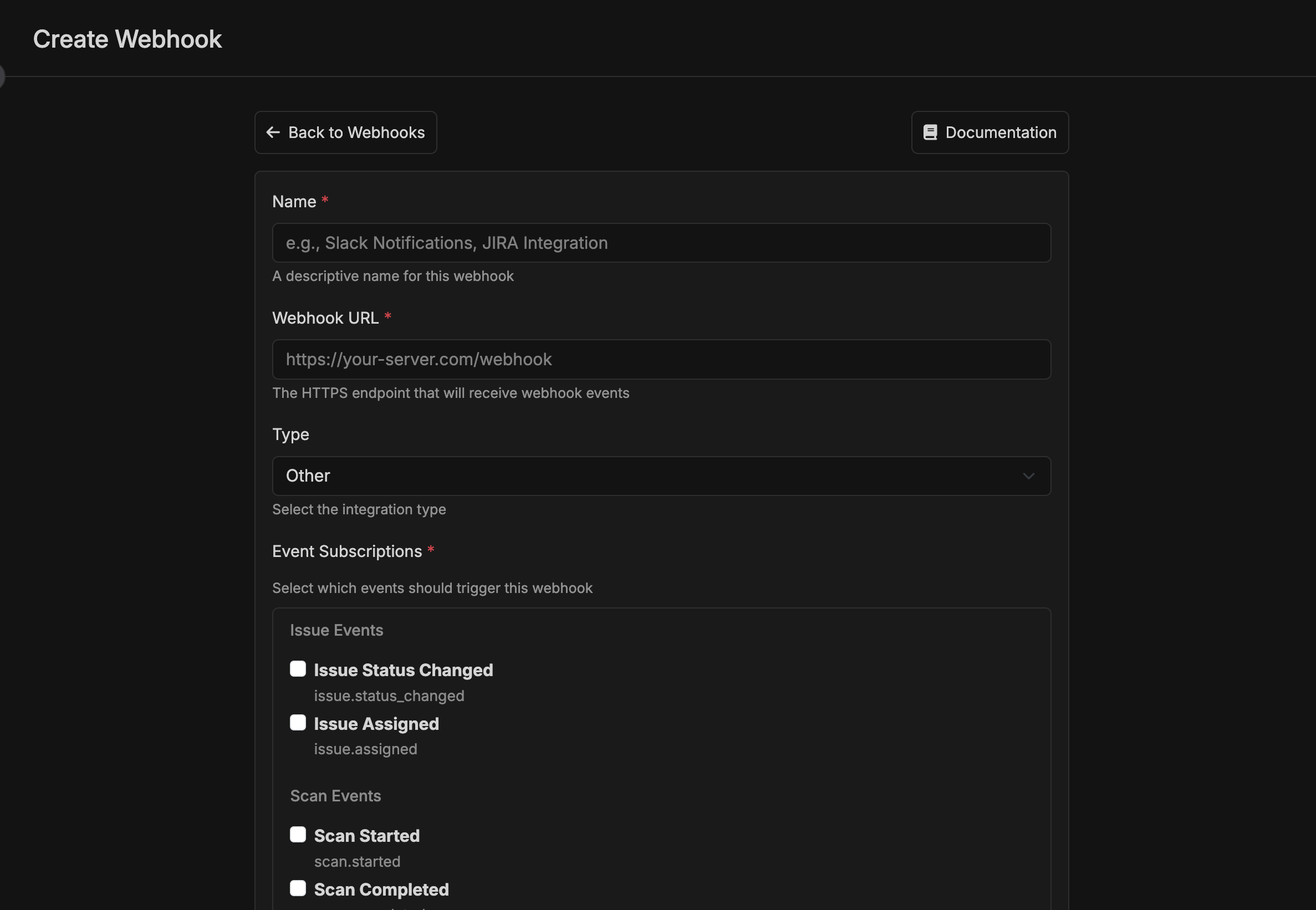

Create webhook form with configuration options

Name: Give your webhook a descriptive name (e.g., “Slack Notifications”, “Production Scan Alerts”)
Webhook URL: Enter your HTTPS endpoint URL
Type: Select the integration type:
- Slack - For Slack webhook integrations
- Zapier - For Zapier zaps
- Other - For custom integrations

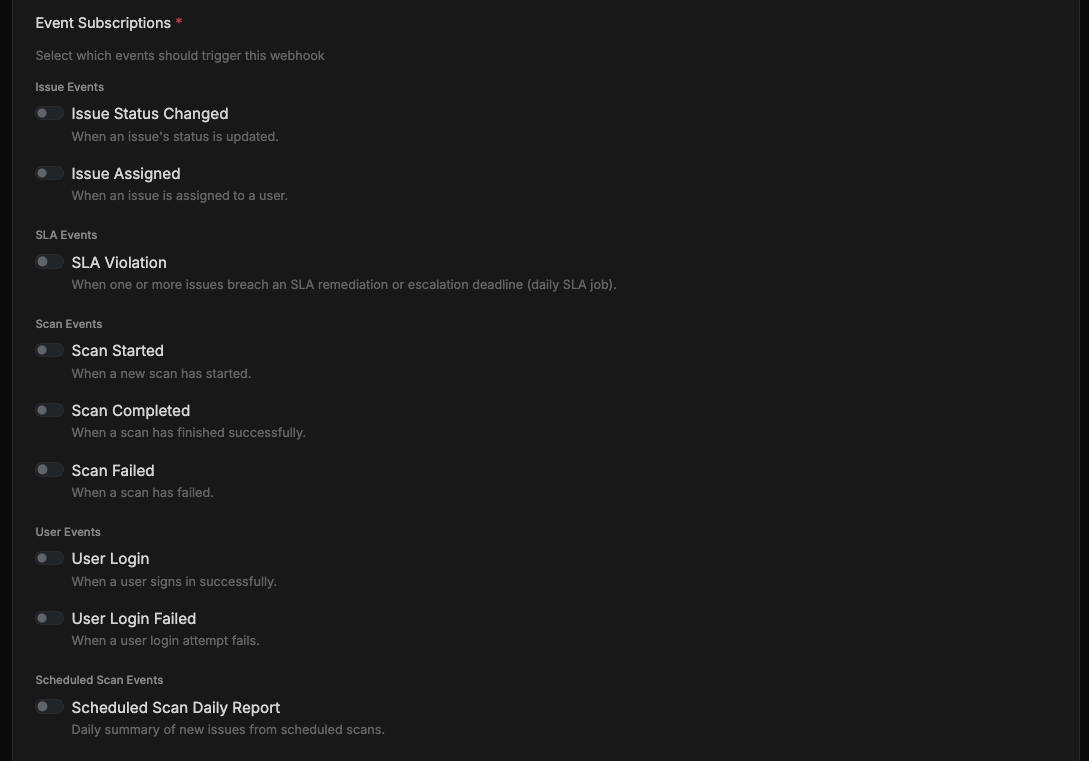

Subscribe to Events

Check the boxes for events you want to receive:
- Issue Status Changed
- Issue Assigned
- Scan Started
- Scan Completed
- Scan Failed
You can select multiple events per webhook

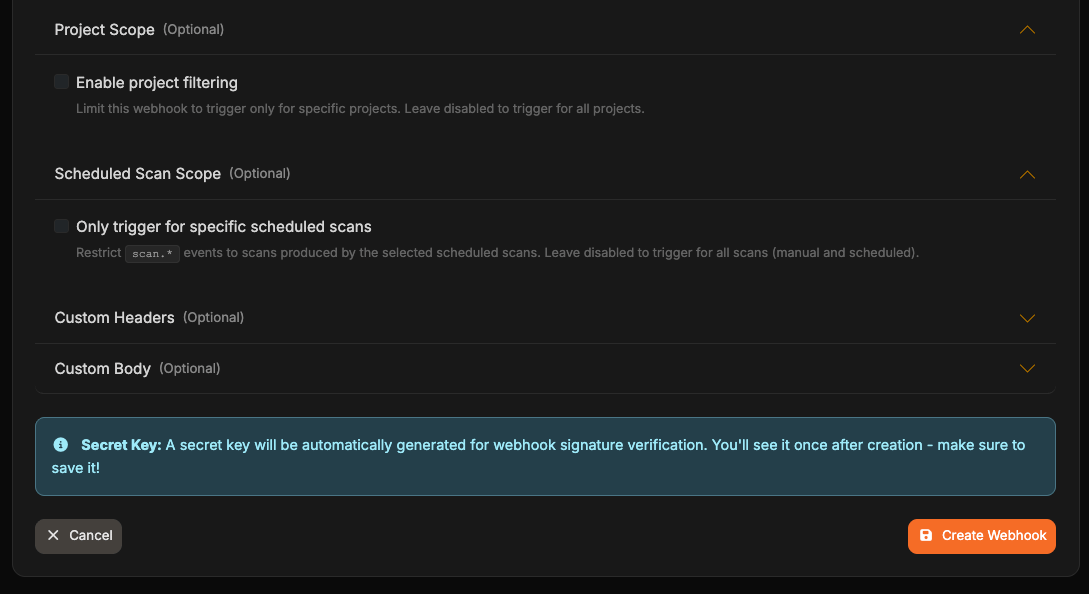

Configure Filters (Optional)

Project Filter

Leave empty to receive events from all projects
Select specific projects to only receive their events
Useful for routing different projects to different endpoints

Status Change Filter (for issue.status_changed events)

Leave empty to receive all status changes
Select specific statuses (e.g., fixed, false_positive) to only receive those changes
Reduces noise by filtering out irrelevant status updates

Add Security (Optional but Recommended)

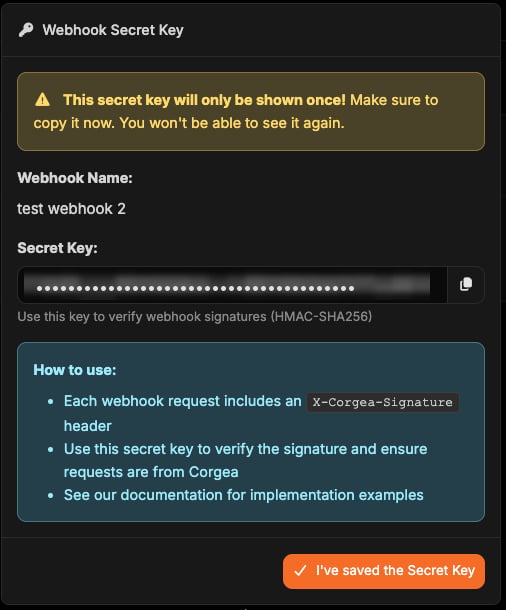

Secret Key

Enter a random, secure string (minimum 32 characters recommended)
Corgea will include an HMAC signature in the X-Corgea-Signature header
Use this to verify webhook authenticity on your end

Custom Headers

Add any headers your endpoint requires
Common examples: Authorization: Bearer <token>, X-API-Key: <key>

Test Your Webhook

Click “Test Webhook” to send a sample payload
Verify your endpoint receives and processes the test correctly
Check the response status and any error messages

Save and Activate

Click “Create Webhook” or “Save”
The webhook is now active and will start receiving events

Verifying Webhook Signatures

If you configured a secret key, verify the signature in your endpoint to ensure authenticity.

Python
Node.js

verify-signature.py

import hmac
import hashlib

def verify_webhook_signature(payload, signature, secret):
    """Verify Corgea webhook signature"""
    expected_signature = hmac.new(
        secret.encode('utf-8'),
        payload.encode('utf-8'),
        hashlib.sha256
    ).hexdigest()

    return hmac.compare_digest(expected_signature, signature)

# In your webhook handler:
if not verify_webhook_signature(request.body, request.headers['X-Corgea-Signature'], SECRET_KEY):
    return HttpResponse(status=403)  # Reject invalid signatures

Use Cases

1. Real-time Slack Notifications

Scenario: Notify your security team in Slack when high-severity issues are found Setup:

Create a Slack incoming webhook URL in your Slack workspace
In Corgea, create a webhook with:
- Type: Slack
- URL: Your Slack webhook URL
- Events: scan.completed
- Project Filter: Critical production projects

Result: Your #security channel gets instant notifications when scans complete

2. Automated Ticketing for Critical Issues

Scenario: Automatically create tickets in Jira/Linear when critical issues are detected Setup:

Create a Zapier zap or custom endpoint that creates tickets
In Corgea, create a webhook with:
- Events: scan.completed, issue.status_changed
- Status Filter: Only open status (to avoid duplicate tickets)
- Project Filter: Production projects

Result: High/critical issues automatically become tickets in your project management tool

3. Risk Acceptance Workflow Integration

Scenario: Automatically document accepted risks in Jira or Linear when security issues are marked as “Accepted Risk” Setup:

Create an endpoint or Zapier integration that creates documentation tickets
In Corgea, create a webhook with:
- Events: issue.status_changed
- Status Filter: Only accepted_risk status
- Project Filter: All projects or specific high-compliance projects
Configure the integration to:
- Create a ticket documenting the risk acceptance
- Include issue details (classification, file path, urgency)
- Tag with “risk-acceptance” label
- Assign to security lead for review

Result: Every accepted risk is automatically logged in your project management system with full context, creating an audit trail for compliance and risk management reviews

4. Custom Dashboard Integration

Scenario: Display real-time security metrics on your internal dashboard Setup:

Build an endpoint that receives webhook data and updates your dashboard
In Corgea, create a webhook with:
- Events: All scan and issue events
- No filters (receive everything)

Result: Your dashboard shows live security scan results and issue trends

5. Multi-team Routing

Scenario: Route different project notifications to different teams Setup:

Create separate webhooks for each team:
- Backend Team Webhook: Project filter = backend projects, Slack channel #backend-security
- Frontend Team Webhook: Project filter = frontend projects, Slack channel #frontend-security
- DevOps Team Webhook: Project filter = infrastructure projects, Slack channel #devops-security

Result: Each team only sees security issues relevant to their projects

6. Compliance Reporting

Scenario: Automatically log all security findings to a compliance system Setup:

Create an endpoint that writes to your compliance database
In Corgea, create a webhook with:
- Events: scan.completed
- All projects
- Store webhook delivery history for audit trail

Result: Complete audit trail of all security scans for compliance purposes

Troubleshooting

Viewing Webhook Delivery History

Navigate to Webhook History

Navigate to Integrations → Webhooks

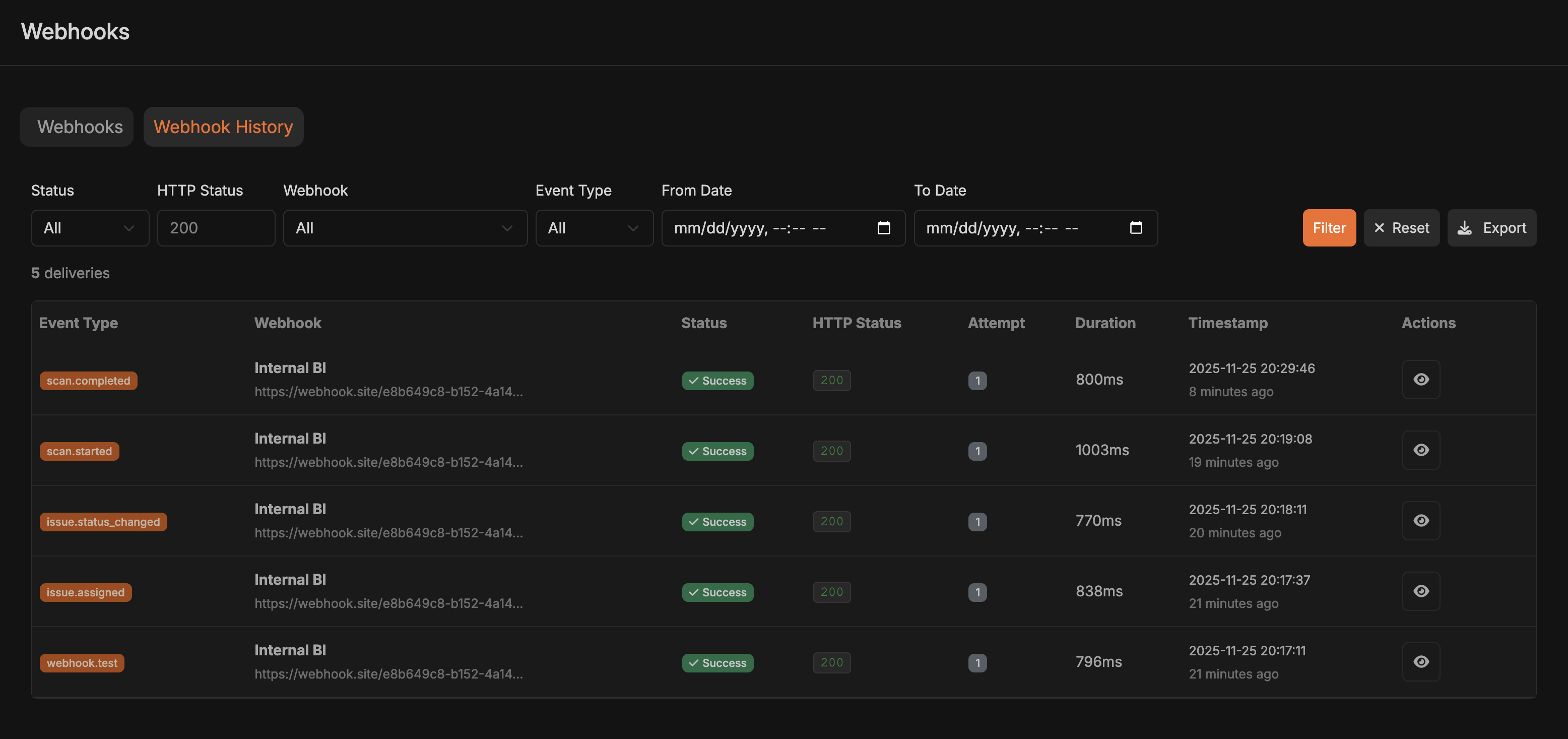

Webhook delivery history showing recent webhook attempts

Access Delivery Log

Click on History or Delivery Log

Review Delivery Details

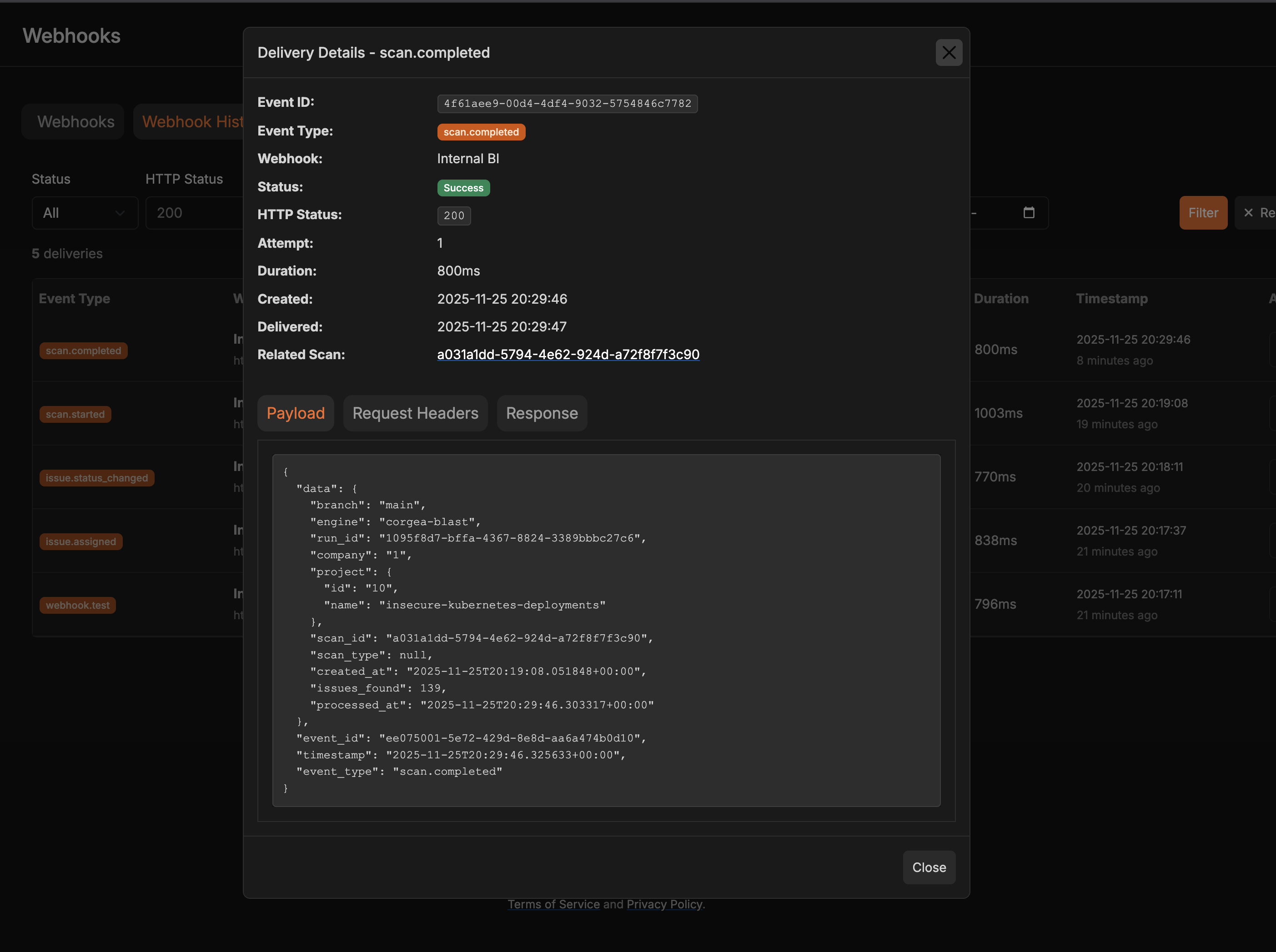

Detailed webhook delivery information including request and response

View all webhook delivery attempts with:

Event type and timestamp
HTTP status code
Request/response details
Error messages (if any)
Retry attempts

Common Issues and Solutions

Webhook Not Receiving Events

Possible Causes:

Webhook is paused or inactive
Event subscriptions not configured
Project/status filters excluding events
Endpoint not returning 2xx status codes

Solutions:

Check webhook status - ensure it’s active (not paused)
Verify event subscriptions are selected
Review filters - temporarily remove filters to test
Check your endpoint logs for incoming requests
Test the webhook using the “Test Webhook” button

Webhook Automatically Paused

Cause: 10 consecutive delivery failuresSolutions:

Check the delivery history for error details
Verify your endpoint URL is correct and accessible
Ensure your endpoint returns 2xx status codes
Check for firewall/security rules blocking Corgea’s requests
Fix the underlying issue, then manually re-activate the webhook
Use “Test Webhook” to verify it’s working before re-enabling

Receiving Too Many Webhook Calls

Solutions:

Use Status Filters: For issue.status_changed, filter to only statuses you care about (e.g., only fixed and false_positive)
Use Project Filters: Only subscribe to specific critical projects
Reduce Event Subscriptions: Unsubscribe from events you don’t need
Implement Rate Limiting: On your endpoint, implement rate limiting or queuing

Signature Verification Failing

Possible Causes:

Wrong secret key
Incorrect signature verification logic
Character encoding issues

Solutions:

Verify you’re using the exact secret key from Corgea
Ensure you’re using HMAC-SHA256 algorithm
Use the raw request body (not parsed JSON) for verification
Check for UTF-8 encoding on both sides
Use hmac.compare_digest() (Python) or crypto.timingSafeEqual() (Node.js) for timing-safe comparison

Log both the received signature and your computed signature to compare

Endpoint Timing Out

Cause: Your endpoint takes longer than 10 seconds to respondSolutions:

Acknowledge Immediately: Return 200 OK immediately, then process asynchronously
Use a Queue: Add webhook payloads to a queue for background processing
Optimize Processing: Speed up your webhook handler logic
Increase Resources: Scale up your endpoint infrastructure

Best Practice Pattern:

webhook-handler.py

@app.route('/webhook', methods=['POST'])
def handle_webhook():
    payload = request.json

    # Immediately acknowledge receipt
    queue.add(process_webhook, payload)

    # Return quickly
    return '', 200

def process_webhook(payload):
    # Do time-consuming work here
    ...

Duplicate Events

Possible Causes:

Multiple webhooks subscribed to same event
Retry logic triggering after delayed success

Solutions:

Check for duplicate webhook configurations
Use event_id field for idempotency - store processed event IDs and skip duplicates
Implement idempotency keys in your endpoint

Idempotency Pattern:

idempotency.py

processed_events = set()  # Or use Redis/database

@app.route('/webhook', methods=['POST'])
def handle_webhook():
    event_id = request.json['event_id']

    if event_id in processed_events:
        return '', 200  # Already processed

    # Process event...
    processed_events.add(event_id)
    return '', 200

Missing Data in Payload

Solutions:

Check the webhook delivery history for the full payload
Some fields may be null if data doesn’t exist (e.g., unassigned issues)
Implement null checks in your handler code
Reference the event-specific payload structure in the delivery history

Getting Webhook Statistics

View performance metrics for your webhooks:

Navigate to Integrations → Webhooks
View each webhook’s statistics:
- Total Deliveries: Total number of webhook calls
- Successful Deliveries: Calls that returned 2xx
- Failed Deliveries: Calls that failed or timed out
- Success Rate: Percentage of successful deliveries
- Consecutive Failures: Current failure streak
- Last Triggered: When the webhook last fired

Manual Retry

If a webhook delivery failed, you can manually retry it:

Go to Integrations → Webhooks → History
Find the failed delivery
Click Retry
A new delivery attempt will be created and sent immediately

Exporting Delivery History

For compliance or debugging, export webhook delivery history:

Navigate to Integrations → Webhooks → History
Apply filters (date range, event type, status, webhook)
Click Export to download CSV
Use the export for:
- Compliance audits
- Performance analysis
- Debugging patterns
- Issue resolution tracking

Testing Tips

Before Going Live

Use webhook.site or RequestBin to inspect payloads
Test with low-volume projects first
Monitor delivery success rate for the first few days
Set up alerting for webhook failures in your own system

Debug Checklist

Webhook URL is correct and accessible
Endpoint returns 2xx status code within 10 seconds
Firewall allows Corgea’s requests
Event subscriptions are selected
Filters are configured correctly (or removed for testing)
Signature verification works (if using secret)
Webhook is active (not paused)

Payload Examples

Issue Status Changed
Scan Completed
Issue Assigned

issue-status-changed.json

{
  "event_id": "a1b2c3d4-e5f6-7890-abcd-ef1234567890",
  "event_type": "issue.status_changed",
  "timestamp": "2025-01-15T14:30:00.000Z",
  "data": {
    "company": "comp-uuid-1234",
    "issue_id": "issue-uuid-5678",
    "classification": "SQL Injection",
    "urgency": "HI",
    "status": "fixed",
    "previous_status": "open",
    "file_path": "src/controllers/user.py",
    "line_num": 45,
    "project": {
      "id": "proj-uuid-9012",
      "name": "Production API"
    },
    "scan_id": "scan-uuid-3456",
    "url": "https://app.corgea.com/issue/issue-uuid-5678/"
  }
}

FAQ

Can I use the same webhook URL for multiple event types?

Yes! Your endpoint will receive an X-Corgea-Event header and event_type field to identify the event.

How many webhooks can I create?

There’s no hard limit, but we recommend organizing by purpose (e.g., one per team or tool).

What happens if my endpoint is down?

Corgea will retry 3 times with exponential backoff. After 10 consecutive failures, the webhook auto-pauses.

Can I test webhooks without triggering real events?

Yes! Use the “Test Webhook” button to send a sample payload without waiting for real events.

Do webhooks support authentication?

Yes! Use custom headers to include authentication tokens, or use HMAC signature verification.

Can I filter webhooks to specific branches?

Not directly, but you can filter by project. You can also filter on the received payload in your endpoint.

Are webhook payloads encrypted?

Payloads are sent over HTTPS (TLS), providing encryption in transit. Use HMAC signatures for verification.

How long are webhook delivery logs kept?

Delivery logs are retained for compliance and debugging. Check with your plan for specific retention periods.

Can I retry a webhook manually?

Yes! Go to the webhook delivery history and click “Retry” on any failed delivery.

What IP addresses does Corgea send webhooks from?

Contact support for the current list of IP addresses to whitelist in your firewall.

Questions or issues? Contact Corgea Support

Getting Started

Core Features

Integrations

Tools & Utilities

Releases

Trust & Compliance

Authentication

What are Webhooks?

Key Benefits

Supported Event Types

How Webhooks Work

The Webhook Lifecycle

Payload Structure

Security Features

Automatic Retry Logic

Headers Sent with Each Webhook

Setting Up a Webhook

Prerequisites

Step-by-Step Setup

Verifying Webhook Signatures

Use Cases

1. Real-time Slack Notifications

2. Automated Ticketing for Critical Issues

3. Risk Acceptance Workflow Integration

4. Custom Dashboard Integration

5. Multi-team Routing

6. Compliance Reporting

Troubleshooting

Viewing Webhook Delivery History

Common Issues and Solutions

Getting Webhook Statistics

Manual Retry

Exporting Delivery History

Testing Tips

Payload Examples

FAQ

Getting Started

Core Features

Integrations

Tools & Utilities

Releases

Trust & Compliance

Authentication

​What are Webhooks?

​Key Benefits

​Supported Event Types

​How Webhooks Work

​The Webhook Lifecycle

​Payload Structure

​Security Features

​Automatic Retry Logic

​Headers Sent with Each Webhook

​Setting Up a Webhook

​Prerequisites

​Step-by-Step Setup

​Verifying Webhook Signatures

​Use Cases

​1. Real-time Slack Notifications

​2. Automated Ticketing for Critical Issues

​3. Risk Acceptance Workflow Integration

​4. Custom Dashboard Integration

​5. Multi-team Routing

​6. Compliance Reporting

​Troubleshooting

​Viewing Webhook Delivery History

​Common Issues and Solutions

​Getting Webhook Statistics

​Manual Retry

​Exporting Delivery History

​Testing Tips

​Payload Examples

​FAQ

What are Webhooks?

Key Benefits

Supported Event Types

How Webhooks Work

The Webhook Lifecycle

Payload Structure

Security Features

Automatic Retry Logic

Headers Sent with Each Webhook

Setting Up a Webhook

Prerequisites

Step-by-Step Setup

Verifying Webhook Signatures

Use Cases

1. Real-time Slack Notifications

2. Automated Ticketing for Critical Issues

3. Risk Acceptance Workflow Integration

4. Custom Dashboard Integration

5. Multi-team Routing

6. Compliance Reporting

Troubleshooting

Viewing Webhook Delivery History

Common Issues and Solutions

Getting Webhook Statistics

Manual Retry

Exporting Delivery History

Testing Tips

Payload Examples

FAQ
