Issue Export

Overview

Corgea provides multiple export options for your security findings, allowing you to integrate with various tools and workflows. You can export scan results in industry-standard formats for further analysis, reporting, or integration with other security tools.

Export Formats

SARIF Export

SARIF (Static Analysis Results Interchange Format) is an industry-standard format for representing the output of static analysis tools. Corgea supports exporting scan results in SARIF 2.1.0 format, making it easy to integrate with various security tools and CI/CD pipelines.

How to Export to SARIF

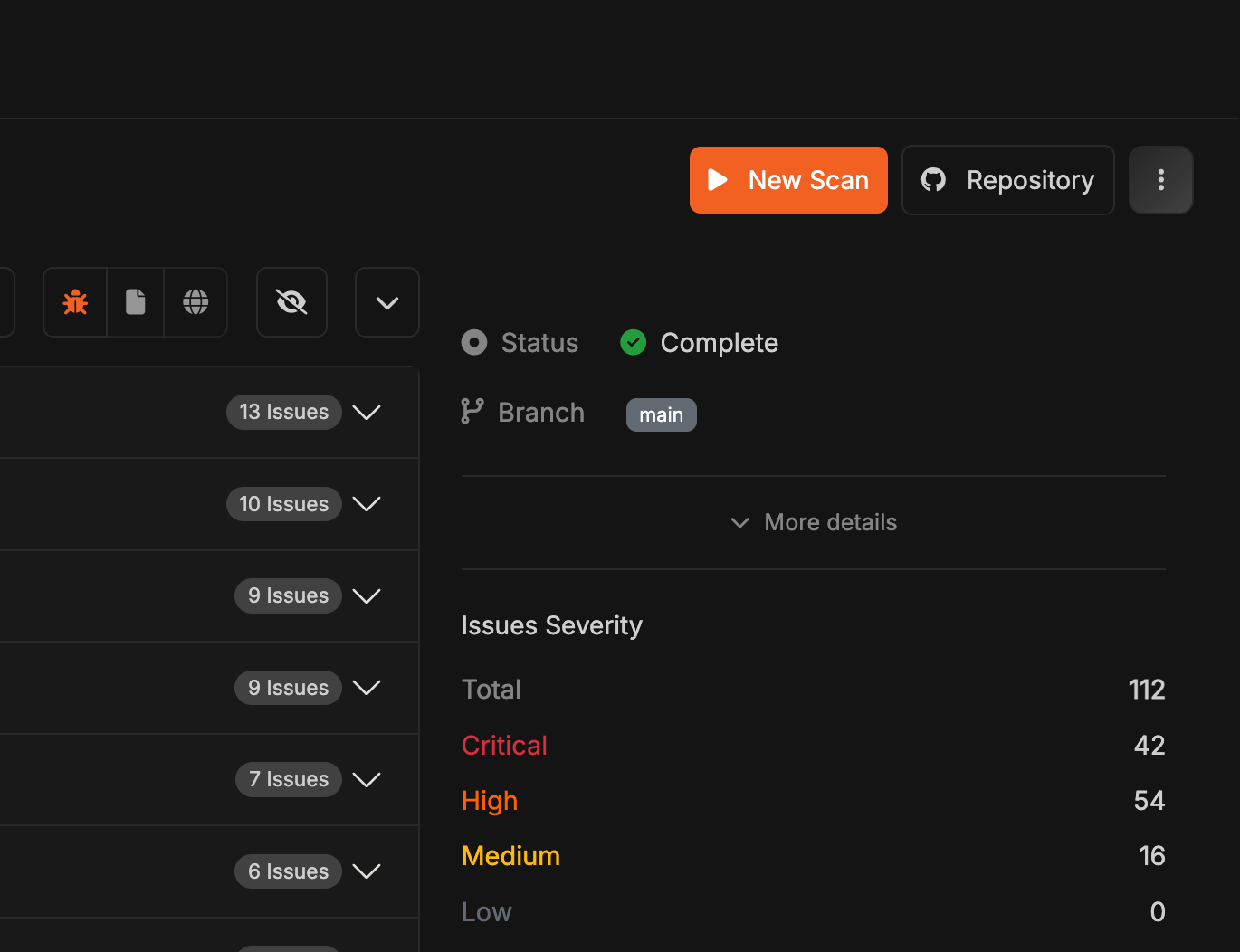

Open a Completed Scan

Go to your project’s scan results page, where you can see all detected security issues.

Open the Export Menu

Open the export menu from the download icon at the end of the filter row above the issues list. The menu appears on the SAST, Logic & Auth, Secret, and Code Quality tabs.

Select Export to SARIF

Choose Export to SARIF to download your security findings in SARIF format. The export honors the filters currently applied to the issues list.

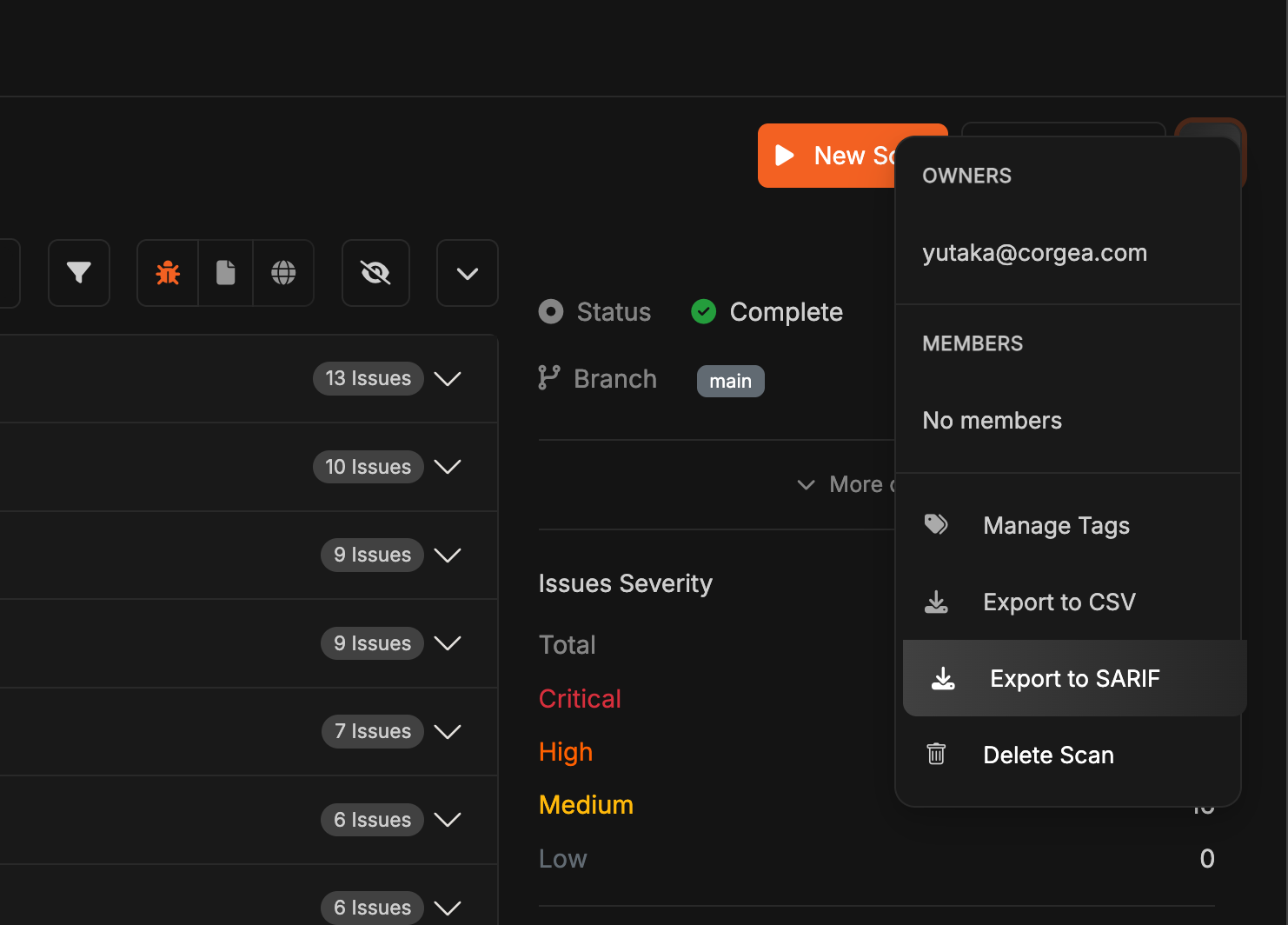

Export to SARIF option in the scan export menu

The export menu is only enabled after a scan completes. While a scan is still running, the download button is disabled with the tooltip Downloads are available after the scan completes.

SARIF Report Structure

The exported SARIF report follows the SARIF 2.1.0 specification and includes:

Tool Information: Details about Corgea as the scanning tool
Rules: Definitions of security vulnerabilities, including CWE classifications, a numeric security-severity score, and help text
Results: Individual security findings with locations, descriptions, and metadata
Code Flows: Source-to-sink traces, including propagation steps, when flow context is available for a finding
Taxonomies: Project tags and applicable code blocking rules for CI/CD policy evaluation

Code flows help compatible tools display the path that untrusted input takes through the application. Each step is labeled source, propagation, or sink. Findings without available flow context are still included with their primary location and description. Each result is mapped to the scanned project’s tags through the corgea_project_tags taxonomy. Results that violate an active code blocking rule are also mapped to that rule through the corgea_pr_policies taxonomy, allowing CI/CD platforms that support SARIF taxonomies to identify policy violations and gate builds. Blocking-rule taxonomies are included only when the person exporting the report has permission to view blocking rules. Each security rule in the SARIF report includes:

{
  "id": "CWE-89",
  "name": "SQL Injection",
  "shortDescription": {
    "text": "SQL Injection"
  },
  "fullDescription": {
    "text": "CWE-89: Improper Neutralization of Special Elements used in an SQL Command ('SQL Injection')"
  },
  "helpUri": "https://cwe.mitre.org/data/definitions/89.html",
  "help": {
    "text": "CWE-89: Improper Neutralization of Special Elements used in an SQL Command ('SQL Injection')\n\nUser-controlled input is concatenated into a SQL query without parameterization.",
    "markdown": "## SQL Injection\n\nUser-controlled input is concatenated into a SQL query without parameterization."
  },
  "defaultConfiguration": {
    "level": "warning"
  },
  "properties": {
    "security-severity": "5.0",
    "tags": ["security", "corgea", "sast", "CWE-89", "python"]
  }
}

The level and security-severity values are derived from the finding’s urgency: critical and high map to error, medium to warning, and low and informational to note.

Sample SARIF Report

You can view a complete sample SARIF report here: Sample SARIF Report The sample contains 27 findings across 14 rules, including:

SQL Injection (CWE-89)
OS Command Injection (CWE-78)
Cross-site Scripting (CWE-79)
Path Traversal (CWE-22)
Deserialization of Untrusted Data (CWE-502)
Server-Side Request Forgery (CWE-918)
And other common security vulnerabilities

Twelve of the findings carry a codeFlows entry, so the sample also shows what source-to-sink traces look like in practice alongside findings that have no flow context.

CSV Export

CSV (Comma-Separated Values) format provides a simple, spreadsheet-compatible export option for your security findings. This format is ideal for:

Creating custom reports and dashboards
Importing into business intelligence tools
Sharing findings with stakeholders who prefer tabular data
Performing bulk analysis in spreadsheet applications

When you export from the Code Quality view, Corgea applies code quality filters automatically so the CSV contains code quality findings for the selected filters. When you export SCA dependencies, the CSV includes a Dependency Type column so you can distinguish direct, transitive, dev, and optional dependencies. The CSV export includes key information about each security finding such as:

Issue ID and Scan ID for tracking
Project name and classification details
Vulnerability type (CWE classification) and urgency level
File location, line number, and programming language
Issue description and severity ratings
Assignee email and name, when an issue is assigned

Sample CSV Report

You can view a complete sample CSV report here: Sample CSV Report The CSV format includes these columns:

Issue ID: Unique identifier for each security finding
Scan ID: Identifier linking findings to specific scan runs
Project Name: Name of the scanned project
Classification ID: CWE identifier (e.g., CWE-89 for SQL Injection)
Issue Classification: Human-readable vulnerability name
Urgency: Priority level (CR=Critical, HI=High, ME=Medium)
File: Path to the affected source code file
Line Number: Specific line where the issue was detected
Language: Programming language of the affected file
Assignee Email: Email address for the assigned user, when available
Assignee Name: Name of the assigned user, when available

The Assignee Email and Assignee Name columns are also included when you export findings from the Advanced Vulnerability Search page.

PDF Export

PDF export produces a branded, formatted report of a scan’s findings that you can share with stakeholders who don’t use Corgea. Unlike SARIF and CSV, which are raw data formats built for tooling, the PDF is a presentation-ready document with a cover page, a severity breakdown, and a findings table.

How to Export to PDF

Open the Export Menu

On the scan details page, open the export menu and select Export as PDF. The option appears on the SAST, Logic & Auth, and Secret tabs.

Choose What to Include

Filter the findings by Issue types and Urgency. All issue types and urgencies are selected by default. Findings to export updates as you change the filters so you can see how many findings the report will contain.

Export as PDF modal with issue type and urgency filters

Generate the Report

Click Generate PDF. Corgea builds the report in the background and shows its progress, then the download starts automatically once the file is ready. The file is named corgea_scan_<scan_id>_findings.pdf.

The export menu is only enabled after a scan completes. While a scan is still running, the button is disabled with the tooltip Downloads are available after the scan completes.

What’s Included

The report always covers the whole scan, so it contains SAST, Logic & Auth, and Secret findings regardless of which tab you opened the export menu from. The Issue types and Urgency filters in the modal are the only filters applied, and they’re independent of the filters set on the scan details page. Corgea always excludes the following from the report:

False positives, whether the issue was marked as a false positive or put on hold as one
Code quality findings, which is why PDF export isn’t offered on the Code Quality tab

Findings are included regardless of their triage status, so open, fixed, and accepted-risk issues all appear in the report.

Report Contents

The cover page is marked Confidential and summarizes the scan:

Organization: Your Corgea organization name
Repository: The repository URL, or the project name when no URL is available
Branch and Commit: The branch and commit SHA that was scanned
Scan date: When the scan completed
Total findings: The number of findings in the report
Exported: When the report was generated

The findings section that follows contains a severity summary with Critical, High, Medium, and Low counts, then a table of every included finding:

Severity: The urgency of the finding
Issue type: The CWE classification
File & line: The affected file path and line number
Description: A shortened description of the finding
Link: An Open link back to the full issue in Corgea

Findings are sorted by severity, from Critical down to Low.

Limits

PDF reports are capped at 5,000 findings. If more findings match your filters, Corgea includes the highest-severity findings first and the modal warns you how many findings matched in total. For larger data sets, use the CSV or SARIF export instead, which are capped at 25,000 findings. The Generate PDF button is disabled when no findings match your filters. Generated reports are available for one hour, after which the download link expires and you’ll need to generate the report again.

PDF export is only available in the Corgea web app. The scan report API and the CLI don’t produce PDF output, so use SARIF for automated reporting workflows.

Dependency Exports

The Container and Dependencies tabs have their own export controls rather than the SARIF, CSV, and PDF menu described above, because they list packages instead of code findings.

Viewing dependencies, downloading SBOM files, and exporting dependency CSVs require the View SCA Issue permission. See Software Composition Analysis for the full dependency workflow.

Findings CSV

The download icon at the end of the filter row exports the dependency findings that match your current search and filters, including the ecosystem, reachability, dependency type, and criticality selections.

Export findings to CSV on the Dependencies tab

SBOM

Project Dependencies opens a modal listing every dependency Corgea resolved for the scan, whether or not it has a vulnerability.

Click Export SBOM in that modal to download a software bill of materials for the scan.

Export SBOM button in the Project Dependencies modal

Dependency Coverage

When dependency coverage is enabled for your organization, the Dependencies tab also shows a Dependency Coverage panel with an Export coverage button. This CSV reports which manifests Corgea parsed and which dependencies it could not resolve, which is useful for confirming that a scan covered everything you expected. The coverage panel and its export are specific to the Dependencies tab. The Container tab offers only the findings CSV.

Integration Benefits

SARIF Integration Advantages

Tool Compatibility: SARIF files can be consumed by various security tools, IDEs, and CI/CD systems
GitHub Integration: GitHub natively supports SARIF for security alerts and code scanning
Standardized Format: Industry-standard format ensures compatibility across different platforms
Rich Metadata: Includes detailed location information, severity levels, and remediation guidance

When exporting from the Code Quality view, SARIF export follows the same scoped filtering and includes only code quality findings that match your current selection.

Use Cases

CI/CD Pipeline Integration: Automatically process SARIF reports in your build pipeline
Security Dashboard Integration: Import findings into centralized security management platforms
Compliance Reporting: Generate standardized reports for security audits and compliance requirements
Developer Workflow: Integrate with IDEs that support SARIF for inline security feedback

Best Practices

Regular Exports: Set up regular exports to track security improvements over time
Version Control: Store exported reports alongside your code for historical tracking
Automated Processing: Use SARIF exports in automated workflows for continuous security monitoring
Tool Integration: Leverage SARIF compatibility to integrate with your existing security toolchain

Technical Specifications

SARIF Version

Corgea exports use SARIF version 2.1.0, ensuring compatibility with the latest tools and platforms.

File Size Considerations

Large projects may generate substantial SARIF files. Consider filtering results or exporting specific vulnerability types for very large codebases.

Schema Validation

All exported SARIF files conform to the official SARIF 2.1.0 JSON schema, ensuring reliable parsing by compatible tools.
